T-Seals

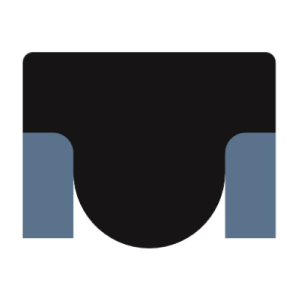

The CDI Product T-seal is a double acting rod or piston seal that provides the quality and reliability the Aerospace industry requires. The T-seal consists of a high quality, “flash-free” Arylast™ T-shaped elastomers which provide excellent stability and prevent elastomer spiraling failures during installation. The Arylast™ T-shaped elastomer is supported on both sides by an Armorlene^® or an Arylex^® Backup Ring which provide excellent extrusion protection to the Arylast™ sealing element. This component combination provides easy installation, low leakage, and long service life for exceptional performance for many static and dynamic sealing applications. Available in all sizes per Aerospace Gland Standards AS4716, AS5857 and MIL-G-5514.

Features and Benefits

Excellent static and good light-duty dynamic sealing.
Excellent resistance to rolling within the gland.
Excellent extrusion resistance.
Provides bidirectional sealing.
Preferred option for media separation, such as fluid/gas or fluid/fluid.
Supplied in “flash-free” (offset parting line) version as standard offering.

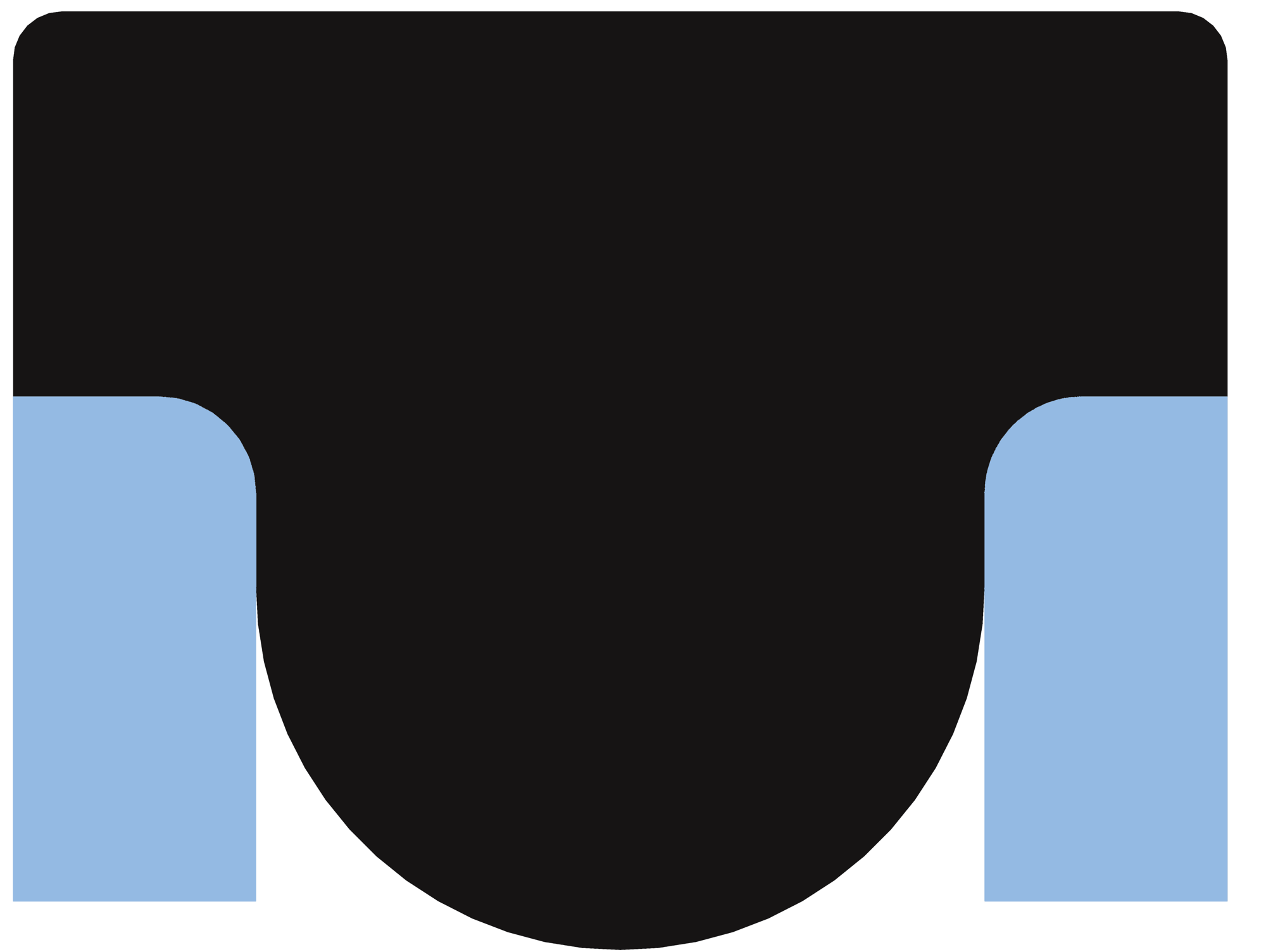

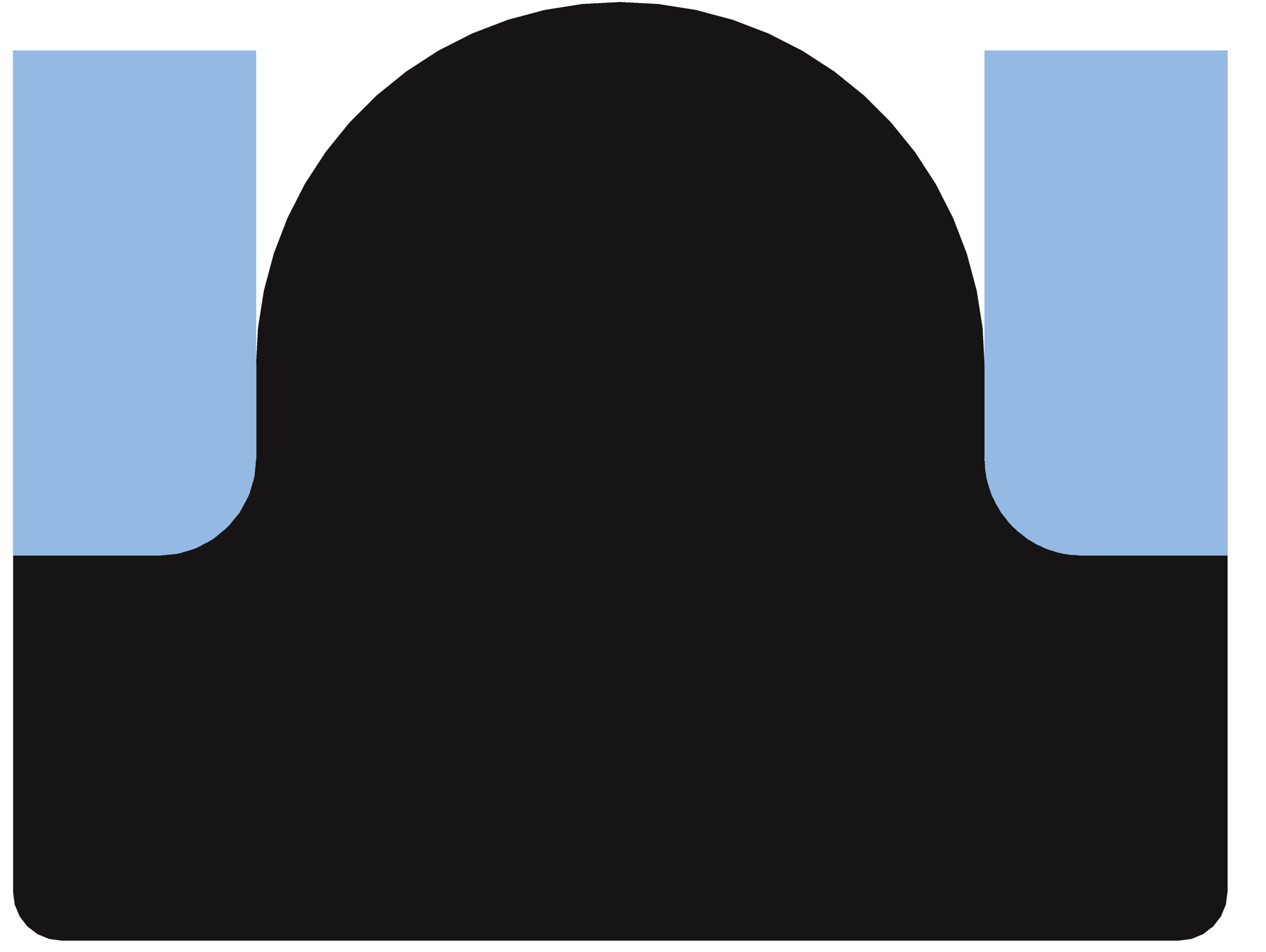

Offered in both scarf-cut (preferred) or solid (endless) Backup Ring configuration.

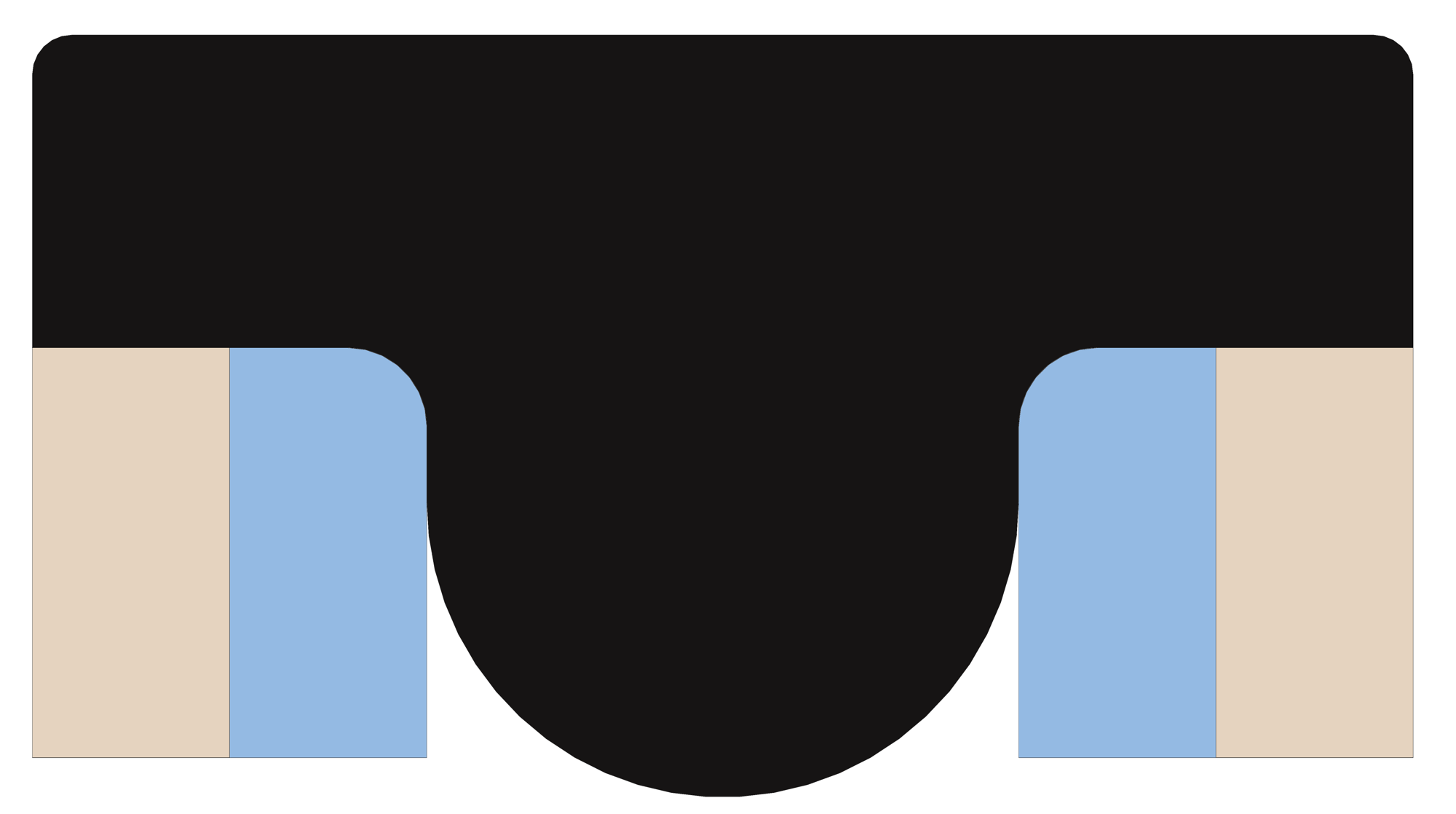

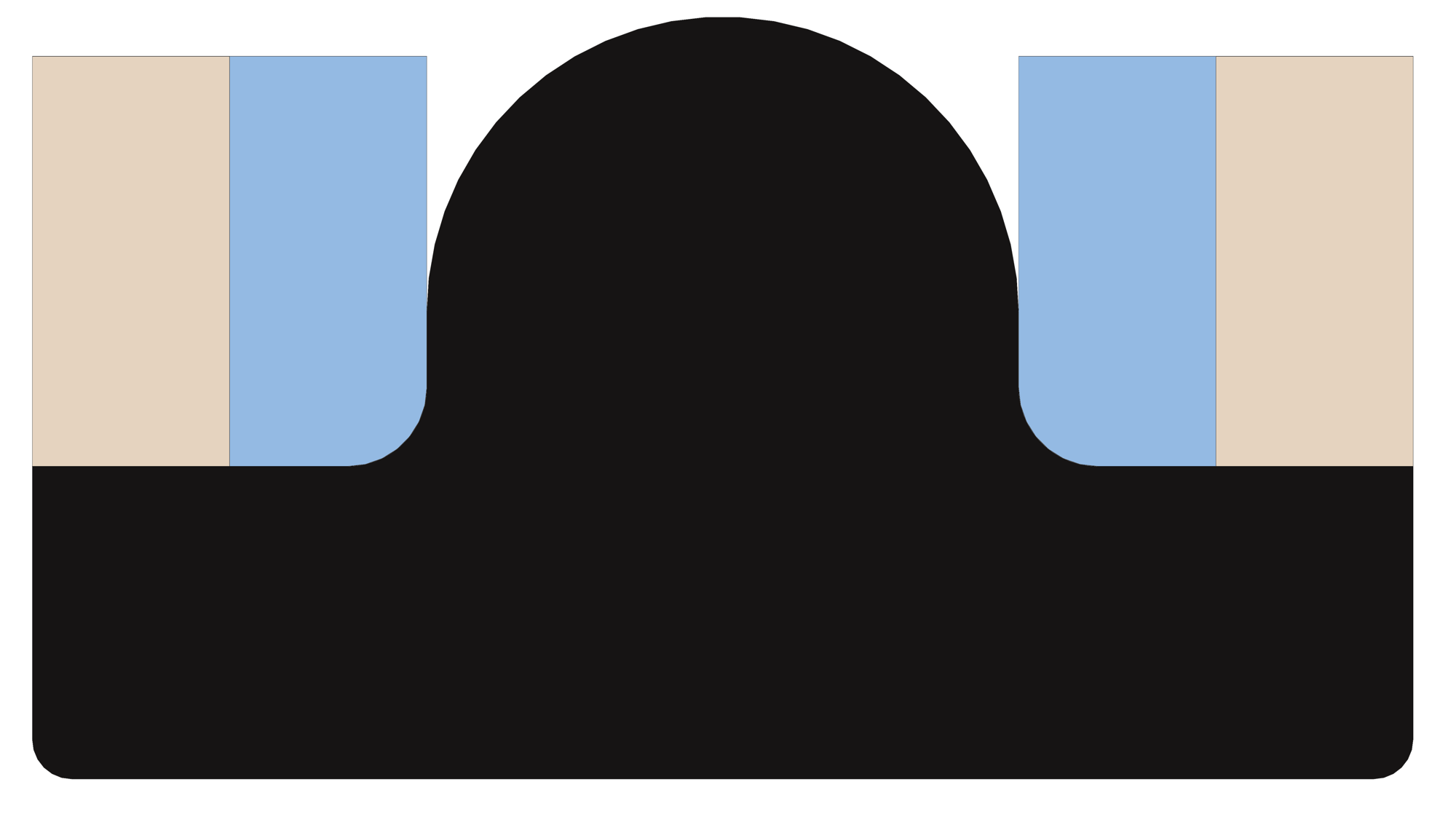

Tandem (5 pcs) version maximizes extrusion resistance at system pressures above 5,000 psi/ 35 MPa.

Product Specs.

Dash Size	C Cylinder OD Min	C Cylinder OD Max	A Cylinder Bore Ø Min	A Cylinder Bore Ø Max	F Piston Groove Ø Min	F Piston Groove Ø Max	B Rod OD Min	B Rod OD Max	H Rod Bore Ø Min	H Rod Bore Ø Max	E Rod Gland Groove Ø Min	E Rod Gland Groove Ø Max	G Zero (0) Backup Width Min	G Zero (0) Backup Width Max	G Zero (1) Backup Width Min	G Zero (1) Backup Width Max	G Zero (2) Backup Width Min	G Zero (2) Backup Width Max	GW Backup Width Min	GW Backup Width Max	Share
004	0.187	0.188	0.190	0.191	0.075	0.076	0.075	0.076	0.078	0.079	0.190	0.191	0.098	0.103	-	-	-	-	-	-	Link	Part #
005	0.218	0.219	0.221	0.222	0.114	0.115	0.107	0.108	0.110	0.111	0.217	0.218	0.098	0.103	-	-	-	-	-	-	Link	Part #
006	0.232	0.233	0.235	0.236	0.128	0.129	0.122	0.123	0.125	0.126	0.232	0.233	0.098	0.103	-	-	-	-	-	-	Link	Part #
007	0.263	0.264	0.266	0.267	0.157	0.158	0.153	0.154	0.156	0.157	0.264	0.265	0.098	0.103	-	-	-	-	-	-	Link	Part #
008	0.294	0.295	0.297	0.298	0.188	0.189	0.184	0.185	0.187	0.188	0.294	0.295	0.098	0.103	-	-	-	-	-	-	Link	Part #
009	0.326	0.327	0.329	0.330	0.219	0.220	0.216	0.217	0.219	0.220	0.327	0.328	0.098	0.103	-	-	-	-	-	-	Link	Part #
010	0.357	0.358	0.360	0.361	0.249	0.250	0.247	0.248	0.250	0.251	0.359	0.360	0.094	0.099	-	-	-	-	-	-	Link	Part #
011	0.419	0.420	0.422	0.423	0.311	0.312	0.309	0.310	0.312	0.313	0.421	0.422	0.094	0.099	-	-	-	-	-	-	Link	Part #
012	0.482	0.483	0.485	0.486	0.374	0.375	0.372	0.373	0.375	0.376	0.484	0.485	0.094	0.099	-	-	-	-	-	-	Link	Part #
013	0.547	0.548	0.550	0.552	0.439	0.441	0.433	0.435	0.437	0.438	0.545	0.547	0.094	0.099	-	-	-	-	-	-	Link	Part #
014	0.610	0.611	0.613	0.615	0.502	0.504	0.496	0.498	0.500	0.501	0.608	0.610	0.094	0.099	-	-	-	-	-	-	Link	Part #
015	0.672	0.673	0.675	0.677	0.564	0.566	0.558	0.560	0.562	0.563	0.670	0.672	0.094	0.099	-	-	-	-	-	-	Link	Part #
016	0.735	0.736	0.738	0.740	0.627	0.629	0.621	0.623	0.625	0.626	0.733	0.735	0.094	0.099	-	-	-	-	-	-	Link	Part #
017	0.797	0.798	0.800	0.802	0.689	0.691	0.683	0.685	0.687	0.688	0.795	0.797	0.094	0.099	-	-	-	-	-	-	Link	Part #
018	0.860	0.861	0.863	0.865	0.751	0.753	0.746	0.748	0.750	0.751	0.858	0.860	0.094	0.099	-	-	-	-	-	-	Link	Part #
019	0.922	0.923	0.925	0.927	0.813	0.815	0.808	0.810	0.812	0.813	0.920	0.922	0.094	0.099	-	-	-	-	-	-	Link	Part #
020	0.988	0.989	0.991	0.993	0.879	0.881	0.871	0.873	0.875	0.876	0.983	0.985	0.094	0.099	-	-	-	-	-	-	Link	Part #
021	1.050	1.051	1.053	1.055	0.941	0.943	0.933	0.935	0.937	0.938	1.045	1.047	0.094	0.099	-	-	-	-	-	-	Link	Part #
022	1.113	1.114	1.116	1.118	1.004	1.006	0.996	0.998	1.000	1.001	1.108	1.110	0.094	0.099	-	-	-	-	-	-	Link	Part #
023	1.175	1.176	1.178	1.180	1.066	1.068	1.058	1.060	1.062	1.063	1.170	1.172	0.094	0.099	-	-	-	-	-	-	Link	Part #
024	1.238	1.239	1.241	1.243	1.129	1.131	1.121	1.123	1.125	1.126	1.233	1.235	0.094	0.099	-	-	-	-	-	-	Link	Part #
025	1.300	1.301	1.303	1.305	1.191	1.193	1.183	1.185	1.187	1.188	1.295	1.297	0.094	0.099	-	-	-	-	-	-	Link	Part #
026	1.363	1.364	1.366	1.368	1.254	1.256	1.246	1.248	1.250	1.251	1.358	1.360	0.094	0.099	-	-	-	-	-	-	Link	Part #
027	1.425	1.426	1.428	1.430	1.316	1.318	1.308	1.310	1.312	1.313	1.420	1.422	0.094	0.099	-	-	-	-	-	-	Link	Part #
028	1.488	1.489	1.491	1.493	1.379	1.381	1.371	1.373	1.375	1.376	1.483	1.485	0.094	0.099	-	-	-	-	-	-	Link	Part #
104	0.294	0.295	0.297	0.298	0.127	0.128	0.122	0.123	0.125	0.126	0.295	0.296	0.141	0.151	-	-	-	-	-	-	Link	Part #
105	0.326	0.327	0.329	0.330	0.157	0.158	0.153	0.154	0.156	0.157	0.327	0.328	0.141	0.151	-	-	-	-	-	-	Link	Part #
106	0.357	0.358	0.360	0.361	0.186	0.187	0.184	0.185	0.187	0.188	0.359	0.360	0.141	0.151	-	-	-	-	-	-	Link	Part #
107	0.388	0.389	0.391	0.392	0.214	0.215	0.216	0.217	0.219	0.220	0.392	0.393	0.141	0.151	-	-	-	-	-	-	Link	Part #
108	0.419	0.420	0.422	0.423	0.245	0.246	0.247	0.248	0.250	0.251	0.423	0.424	0.141	0.151	-	-	-	-	-	-	Link	Part #
109	0.482	0.483	0.485	0.486	0.307	0.308	0.309	0.310	0.312	0.313	0.486	0.487	0.141	0.151	-	-	-	-	-	-	Link	Part #
110	0.547	0.548	0.550	0.552	0.377	0.379	0.371	0.373	0.375	0.376	0.546	0.548	0.141	0.151	-	-	-	-	-	-	Link	Part #
111	0.610	0.611	0.613	0.615	0.439	0.441	0.433	0.435	0.437	0.438	0.609	0.611	0.141	0.151	-	-	-	-	-	-	Link	Part #
112	0.672	0.673	0.675	0.677	0.500	0.502	0.496	0.498	0.500	0.501	0.672	0.674	0.141	0.151	-	-	-	-	-	-	Link	Part #
113	0.735	0.736	0.738	0.740	0.563	0.565	0.558	0.560	0.562	0.563	0.737	0.739	0.141	0.151	-	-	-	-	-	-	Link	Part #
114	0.797	0.798	0.800	0.802	0.625	0.627	0.621	0.623	0.625	0.626	0.797	0.799	0.141	0.151	-	-	-	-	-	-	Link	Part #
115	0.860	0.861	0.863	0.865	0.687	0.689	0.683	0.685	0.687	0.688	0.859	0.861	0.141	0.151	-	-	-	-	-	-	Link	Part #
116	0.922	0.923	0.925	0.927	0.749	0.751	0.746	0.748	0.750	0.751	0.923	0.925	0.141	0.151	-	-	-	-	-	-	Link	Part #
117	0.988	0.989	0.991	0.993	0.815	0.817	0.808	0.810	0.812	0.813	0.985	0.987	0.141	0.151	-	-	-	-	-	-	Link	Part #
118	1.050	1.051	1.053	1.055	0.877	0.879	0.871	0.873	0.875	0.876	1.048	1.050	0.141	0.151	-	-	-	-	-	-	Link	Part #
119	1.113	1.114	1.116	1.118	0.940	0.942	0.933	0.935	0.937	0.938	1.110	1.112	0.141	0.151	-	-	-	-	-	-	Link	Part #
120	1.175	1.176	1.178	1.180	1.001	1.003	0.996	0.998	1.000	1.001	1.173	1.175	0.141	0.151	-	-	-	-	-	-	Link	Part #
121	1.238	1.239	1.241	1.243	1.064	1.066	1.058	1.060	1.062	1.063	1.235	1.237	0.141	0.151	-	-	-	-	-	-	Link	Part #
122	1.300	1.301	1.303	1.305	1.126	1.128	1.121	1.123	1.125	1.126	1.298	1.300	0.141	0.151	-	-	-	-	-	-	Link	Part #
123	1.363	1.364	1.368	1.370	1.189	1.191	1.183	1.185	1.187	1.188	1.360	1.362	0.141	0.151	-	-	-	-	-	-	Link	Part #
124	1.425	1.426	1.428	1.430	1.251	1.253	1.246	1.248	1.250	1.251	1.423	1.425	0.141	0.151	-	-	-	-	-	-	Link	Part #
125	1.488	1.489	1.491	1.493	1.314	1.316	1.308	1.310	1.312	1.313	1.485	1.487	0.141	0.151	-	-	-	-	-	-	Link	Part #
126	1.550	1.551	1.553	1.555	1.376	1.378	1.371	1.373	1.375	1.376	1.548	1.550	0.141	0.151	-	-	-	-	-	-	Link	Part #
127	1.613	1.614	1.616	1.618	1.439	1.441	1.433	1.435	1.437	1.439	1.610	1.612	0.141	0.151	-	-	-	-	-	-	Link	Part #
128	1.675	1.676	1.678	1.680	1.501	1.503	1.496	1.498	1.500	1.502	1.673	1.675	0.141	0.151	-	-	-	-	-	-	Link	Part #
129	1.738	1.739	1.741	1.743	1.564	1.566	1.558	1.560	1.562	1.564	1.735	1.737	0.141	0.151	-	-	-	-	-	-	Link	Part #
130	1.801	1.802	1.805	1.807	1.629	1.631	1.621	1.623	1.625	1.627	1.798	1.800	0.141	0.151	-	-	-	-	-	-	Link	Part #
131	1.863	1.864	1.867	1.869	1.691	1.693	1.683	1.685	1.687	1.689	1.860	1.862	0.141	0.151	-	-	-	-	-	-	Link	Part #
132	1.926	1.927	1.930	1.932	1.754	1.756	1.746	1.748	1.750	1.752	1.923	1.925	0.141	0.151	-	-	-	-	-	-	Link	Part #
133	1.988	1.989	1.992	1.994	1.816	1.818	1.808	1.810	1.813	1.815	1.984	1.986	0.141	0.151	-	-	-	-	-	-	Link	Part #
134	2.051	2.052	2.055	2.057	1.879	1.881	1.871	1.873	1.876	1.878	2.047	2.049	0.141	0.151	-	-	-	-	-	-	Link	Part #
135	2.114	2.115	2.118	2.120	1.942	1.944	1.934	1.936	1.939	1.941	2.110	2.112	0.141	0.151	-	-	-	-	-	-	Link	Part #
136	2.176	2.177	2.18	2.182	2.004	2.006	1.996	1.998	2.001	2.003	2.172	2.174	0.141	0.151	-	-	-	-	-	-	Link	Part #
137	2.239	2.240	2.243	2.245	2.067	2.069	2.059	2.061	2.064	2.066	2.235	2.237	0.141	0.151	-	-	-	-	-	-	Link	Part #
138	2.301	2.302	2.305	2.307	2.129	2.131	2.121	2.123	2.126	2.128	2.297	2.299	0.141	0.151	-	-	-	-	-	-	Link	Part #
139	2.649	2.650	2.368	2.370	2.192	2.194	2.184	2.186	2.179	2.181	2.360	2.362	0.141	0.151	-	-	-	-	-	-	Link	Part #
140	2.426	2.427	2.430	2.432	2.254	2.256	2.246	2.248	2.251	2.253	2.422	2.424	0.141	0.151	-	-	-	-	-	-	Link	Part #
141	2.488	2.490	2.493	2.495	2.317	2.319	2.309	2.311	2.314	2.316	2.485	2.487	0.141	0.151	-	-	-	-	-	-	Link	Part #
142	2.550	2.552	2.555	2.557	2.379	2.381	2.371	2.373	2.376	2.378	2.547	2.549	0.141	0.151	-	-	-	-	-	-	Link	Part #
143	2.613	2.615	2.618	2.620	2.442	2.444	2.434	2.436	2.439	2.441	2.610	2.612	0.141	0.151	-	-	-	-	-	-	Link	Part #
144	2.675	2.677	2.680	2.682	2.504	2.506	2.496	2.498	2.501	2.503	2.672	2.674	0.141	0.151	-	-	-	-	-	-	Link	Part #
145	2.738	2.740	2.743	2.745	2.567	2.569	2.559	2.561	2.564	2.566	2.735	2.737	0.141	0.151	-	-	-	-	-	-	Link	Part #
146	2.800	2.802	2.805	2.807	2.629	2.631	2.621	2.623	2.626	2.628	2.797	2.799	0.141	0.151	-	-	-	-	-	-	Link	Part #
147	2.863	2.865	2.868	2.870	2.692	2.694	2.684	2.686	2.689	2.691	2.860	2.862	0.141	0.151	-	-	-	-	-	-	Link	Part #
148	2.925	2.927	2.930	2.932	2.754	2.756	2.746	2.748	2.751	2.753	2.922	2.924	0.141	0.151	-	-	-	-	-	-	Link	Part #
149	2.988	2.990	2.993	2.995	2.817	2.819	2.809	2.811	2.814	2.816	2.985	2.987	0.141	0.151	-	-	-	-	-	-	Link	Part #
210	0.988	0.989	0.991	0.993	0.748	0.750	0.746	0.748	0.75	0.752	0.989	0.991	0.188	0.198	-	-	-	-	-	-	Link	Part #
211	1.050	1.051	1.053	1.055	0.810	0.812	0.808	0.810	0.812	0.813	1.051	1.053	0.188	0.198	-	-	-	-	-	-	Link	Part #
212	1.113	1.114	1.116	1.118	0.872	0.874	0.871	0.873	0.875	0.876	1.115	1.117	0.188	0.198	-	-	-	-	-	-	Link	Part #
213	1.175	1.176	1.178	1.180	0.934	0.936	0.933	0.935	0.937	0.938	1.177	1.179	0.188	0.198	-	-	-	-	-	-	Link	Part #
214	1.238	1.239	1.241	1.243	0.997	0.999	0.996	0.998	1.000	1.001	1.240	1.242	0.188	0.198	-	-	-	-	-	-	Link	Part #
215	1.300	1.301	1.303	1.305	1.059	1.061	1.058	1.060	1.062	1.063	1.302	1.304	0.188	0.198	-	-	-	-	-	-	Link	Part #
216	1.363	1.364	1.366	1.368	1.122	1.124	1.121	1.123	1.125	1.126	1.365	1.367	0.188	0.198	-	-	-	-	-	-	Link	Part #
217	1.425	1.426	1.428	1.430	1.184	1.186	1.183	1.185	1.187	1.188	1.427	1.429	0.188	0.198	-	-	-	-	-	-	Link	Part #
218	1.488	1.489	1.491	1.493	1.247	1.249	1.246	1.248	1.250	1.251	1.490	1.492	0.188	0.198	-	-	-	-	-	-	Link	Part #
219	1.550	1.551	1.553	1.555	1.309	1.311	1.308	1.310	1.312	1.313	1.552	1.554	0.188	0.198	-	-	-	-	-	-	Link	Part #
220	1.613	1.614	1.616	1.618	1.372	1.374	1.371	1.373	1.375	1.376	1.615	1.617	0.188	0.198	-	-	-	-	-	-	Link	Part #
221	1.675	1.676	1.678	1.680	1.434	1.436	1.433	1.435	1.437	1.438	1.677	1.679	0.188	0.198	-	-	-	-	-	-	Link	Part #
222	1.738	1.739	1.741	1.743	1.497	1.499	1.496	1.498	4.500	4.501	1.740	1.742	0.188	0.198	-	-	-	-	-	-	Link	Part #
223	1.863	1.864	1.867	1.869	1.623	1.625	1.621	1.623	1.625	1.627	1.865	1.867	0.188	0.198	-	-	-	-	-	-	Link	Part #
224	1.988	1.989	1.992	1.994	1.748	1.750	1.746	1.748	1.750	1.752	1.990	1.992	0.188	0.198	-	-	-	-	-	-	Link	Part #
225	2.114	2.115	2.118	2.120	1.874	1.876	1.871	1.873	1.876	1.878	2.115	2.117	0.188	0.198	-	-	-	-	-	-	Link	Part #
226	2.239	2.240	2.243	2.245	1.999	2.001	1.996	1.998	2.001	2.003	2.240	2.242	0.188	0.198	-	-	-	-	-	-	Link	Part #
227	2.364	2.365	2.368	2.370	2.124	2.126	2.121	2.123	2.126	2.128	2.365	2.367	0.188	0.198	-	-	-	-	-	-	Link	Part #
228	2.488	2.490	2.493	2.495	2.249	2.251	2.246	2.248	2.251	2.253	2.490	2.492	0.188	0.198	-	-	-	-	-	-	Link	Part #
229	2.613	2.615	2.618	2.620	2.374	2.376	2.371	2.373	2.376	2.378	2.615	2.617	0.188	0.198	-	-	-	-	-	-	Link	Part #
230	2.738	2.740	2.743	2.745	2.499	2.501	2.496	2.498	2.501	2.503	2.740	2.742	0.188	0.198	-	-	-	-	-	-	Link	Part #
231	2.863	2.865	2.868	2.870	2.624	2.626	2.621	2.623	2.626	2.628	2.865	2.867	0.188	0.198	-	-	-	-	-	-	Link	Part #
232	2.988	2.990	2.993	2.995	2.749	2.751	2.746	2.748	2.751	2.753	2.990	2.992	0.188	0.198	-	-	-	-	-	-	Link	Part #
233	3.113	3.115	3.118	3.120	2.874	2.876	2.871	2.873	2.876	2.878	3.115	3.117	0.188	0.198	-	-	-	-	-	-	Link	Part #
234	3.238	3.240	3.243	3.245	2.999	3.001	2.995	2.997	3.000	3.002	3.239	3.241	0.188	0.198	-	-	-	-	-	-	Link	Part #
235	3.363	3.365	3.368	3.370	3.124	3.126	3.120	3.122	3.125	3.127	3.364	3.366	0.188	0.198	-	-	-	-	-	-	Link	Part #
236	3.488	3.490	3.493	3.495	3.249	3.251	3.245	3.247	3.250	3.252	3.489	3.491	0.188	0.198	-	-	-	-	-	-	Link	Part #
237	3.613	3.615	3.618	3.620	3.374	3.376	3.370	3.372	3.375	3.377	3.614	3.616	0.188	0.198	-	-	-	-	-	-	Link	Part #
238	3.738	3.740	3.743	3.745	3.499	3.501	3.495	3.497	3.500	3.502	3.739	3.741	0.188	0.198	-	-	-	-	-	-	Link	Part #
239	3.863	3.865	3.868	3.870	3.624	3.626	3.620	3.622	3.625	3.627	3.864	3.866	0.188	0.198	-	-	-	-	-	-	Link	Part #
240	3.988	3.990	3.993	3.995	3.749	3.751	3.745	3.747	3.750	3.752	3.989	3.991	0.188	0.198	-	-	-	-	-	-	Link	Part #
241	4.113	4.115	4.118	4.120	3.874	3.876	3.870	3.872	3.875	3.877	4.114	4.116	0.188	0.198	-	-	-	-	-	-	Link	Part #
242	4.238	4.240	4.243	4.245	3.999	4.001	3.995	3.997	4.000	4.002	4.239	4.241	0.188	0.198	-	-	-	-	-	-	Link	Part #
243	4.363	4.365	4.368	4.370	4.124	4.126	4.120	4.122	4.125	4.127	4.364	4.366	0.188	0.198	-	-	-	-	-	-	Link	Part #
244	4.487	4.489	4.493	4.495	4.249	4.251	4.245	4.247	4.250	4.252	4.489	4.491	0.188	0.198	-	-	-	-	-	-	Link	Part #
245	4.612	4.614	4.618	4.620	4.374	4.376	4.370	4.372	4.375	4.377	4.614	4.616	0.188	0.198	-	-	-	-	-	-	Link	Part #
246	4.737	4.739	4.743	4.745	4.499	4.501	4.495	4.497	4.501	4.503	4.739	4.741	0.188	0.198	-	-	-	-	-	-	Link	Part #
247	4.862	4.864	4.868	4.870	4.624	4.626	4.620	4.622	4.626	4.628	4.864	4.866	0.188	0.198	-	-	-	-	-	-	Link	Part #
325	1.863	1.864	1.867	1.869	1.493	1.495	1.496	1.498	1.500	1.502	1.870	1.872	0.281	0.291	-	-	-	-	-	-	Link	Part #
326	1.988	1.989	1.992	1.994	1.618	1.620	1.621	1.623	1.625	1.627	1.995	1.997	0.281	0.291	-	-	-	-	-	-	Link	Part #
327	2.114	2.115	2.118	2.120	1.744	1.746	1.746	1.748	1.750	1.752	2.120	2.122	0.281	0.291	-	-	-	-	-	-	Link	Part #
328	2.239	2.240	2.243	2.245	1.869	1.871	1.871	1.873	1.876	1.878	2.245	2.247	0.281	0.291	-	-	-	-	-	-	Link	Part #
329	2.364	2.365	2.368	2.370	1.994	1.996	1.996	1.998	2.001	2.003	2.370	2.372	0.281	0.291	-	-	-	-	-	-	Link	Part #
330	2.488	2.490	2.493	2.495	2.119	2.121	2.121	2.123	2.126	2.128	2.495	2.497	0.281	0.291	-	-	-	-	-	-	Link	Part #
331	2.613	2.615	2.618	2.620	2.244	2.246	2.246	2.248	2.251	2.253	2.620	2.622	0.281	0.291	-	-	-	-	-	-	Link	Part #
332	2.738	2.740	2.743	2.745	2.369	2.371	2.371	2.373	2.376	2.378	2.745	2.747	0.281	0.291	-	-	-	-	-	-	Link	Part #
333	2.863	2.865	2.868	2.870	2.494	2.496	2.496	2.498	2.501	2.503	2.870	2.872	0.281	0.291	-	-	-	-	-	-	Link	Part #
334	2.988	2.990	2.993	2.995	2.619	2.621	2.621	2.623	2.626	2.628	2.995	2.997	0.281	0.291	-	-	-	-	-	-	Link	Part #
335	3.113	3.115	3.118	3.120	2.744	2.746	2.746	2.748	2.751	2.753	3.120	3.122	0.281	0.291	-	-	-	-	-	-	Link	Part #
336	3.238	3.240	3.243	3.245	2.869	2.871	2.871	2.873	2.876	2.878	3.245	3.247	0.281	0.291	-	-	-	-	-	-	Link	Part #
337	3.363	3.365	3.368	3.370	2.994	2.996	2.995	2.997	3.000	3.002	3.369	3.371	0.281	0.291	-	-	-	-	-	-	Link	Part #
338	3.488	3.490	3.493	3.495	3.119	3.121	3.120	3.122	3.125	3.127	3.494	3.496	0.281	0.291	-	-	-	-	-	-	Link	Part #
339	3.613	3.615	3.618	3.620	3.244	3.246	3.245	3.247	3.250	3.252	3.619	3.621	0.281	0.291	-	-	-	-	-	-	Link	Part #
340	3.738	3.740	3.743	3.745	3.369	3.371	3.370	3.372	3.375	3.377	3.744	3.746	0.281	0.291	-	-	-	-	-	-	Link	Part #
341	3.863	3.865	3.868	3.870	3.494	3.496	3.495	3.497	3.500	3.502	3.869	3.871	0.281	0.291	-	-	-	-	-	-	Link	Part #
342	3.988	3.990	3.993	3.995	3.619	3.621	3.620	3.622	3.625	3.627	3.994	3.996	0.281	0.291	-	-	-	-	-	-	Link	Part #
343	4.113	4.115	4.118	4.120	3.744	3.746	3.745	3.747	3.750	3.752	4.119	4.121	0.281	0.291	-	-	-	-	-	-	Link	Part #
344	4.238	4.240	4.243	4.245	3.869	3.871	3.870	3.872	3.875	3.877	4.244	4.246	0.281	0.291	-	-	-	-	-	-	Link	Part #
345	4.363	4.365	4.368	4.370	3.994	3.996	3.995	3.997	4.000	4.002	4.369	4.371	0.281	0.291	-	-	-	-	-	-	Link	Part #
346	4.487	4.489	4.493	4.495	4.119	4.121	4.120	4.122	4.125	4.127	4.494	4.496	0.281	0.291	-	-	-	-	-	-	Link	Part #
347	4.612	4.614	4.618	4.620	4.244	4.246	4.245	4.247	4.250	4.252	4.619	4.621	0.281	0.291	-	-	-	-	-	-	Link	Part #
348	4.737	4.739	4.743	4.745	4.369	4.371	4.370	4.372	4.375	4.377	4.744	4.746	0.281	0.291	-	-	-	-	-	-	Link	Part #
349	4.862	4.864	4.868	4.870	4.494	4.496	4.495	4.497	4.500	4.502	4.869	4.871	0.281	0.291	-	-	-	-	-	-	Link	Part #
425	4.968	4.970	4.974	4.977	4.494	4.497	4.494	4.497	4.501	4.503	4.974	4.977	0.375	0.385	-	-	-	-	-	-	Link	Part #
426	5.093	5.095	5.099	5.102	4.619	4.622	4.619	4.622	4.626	4.628	5.099	5.102	0.375	0.385	-	-	-	-	-	-	Link	Part #
427	5.218	5.220	5.224	5.227	4.744	4.747	4.744	4.747	4.751	4.753	5.224	5.227	0.375	0.385	-	-	-	-	-	-	Link	Part #
428	5.343	5.345	5.349	5.352	4.869	4.872	4.869	4.872	4.876	4.878	5.349	5.352	0.375	0.385	-	-	-	-	-	-	Link	Part #
429	5.468	5.470	5.474	5.477	4.994	4.997	4.994	4.997	5.001	5.003	5.474	5.477	0.375	0.385	-	-	-	-	-	-	Link	Part #
430	5.593	5.595	5.599	5.602	5.119	5.122	5.119	5.122	5.513	5.515	5.599	5.602	0.375	0.385	-	-	-	-	-	-	Link	Part #
431	5.718	5.720	5.724	5.727	5.244	5.247	5.244	5.247	5.251	5.253	5.724	5.727	0.375	0.385	-	-	-	-	-	-	Link	Part #
432	5.843	5.845	5.849	5.852	5.369	5.372	5.369	5.372	5.376	5.378	5.849	5.852	0.375	0.385	-	-	-	-	-	-	Link	Part #
433	5.968	5.970	5.974	5.977	5.494	5.497	5.494	5.497	5.501	5.503	5.974	5.977	0.375	0.385	-	-	-	-	-	-	Link	Part #
434	6.093	6.095	6.099	6.102	5.619	5.622	5.619	5.622	5.626	5.628	6.099	6.102	0.375	0.385	-	-	-	-	-	-	Link	Part #
435	6.218	6.220	6.224	6.227	5.744	5.747	5.744	5.747	5.751	5.753	6.224	6.227	0.375	0.385	-	-	-	-	-	-	Link	Part #
436	6.343	6.345	6.349	6.352	5.869	5.872	5.869	5.872	5.876	5.878	6.349	6.352	0.375	0.385	-	-	-	-	-	-	Link	Part #
437	6.468	6.470	6.474	6.477	5.994	5.997	5.994	5.997	6.001	6.003	6.474	6.477	0.375	0.385	-	-	-	-	-	-	Link	Part #
438	6.718	6.720	6.724	6.727	6.244	6.247	6.244	6.247	6.251	6.253	6.724	6.727	0.375	0.385	-	-	-	-	-	-	Link	Part #
439	6.968	6.970	6.974	6.977	6.494	6.497	6.494	6.497	6.501	6.503	6.974	6.977	0.375	0.385	-	-	-	-	-	-	Link	Part #
440	7.218	7.220	7.224	7.227	6.744	6.747	6.744	6.747	6.751	6.753	7.224	7.227	0.375	0.385	-	-	-	-	-	-	Link	Part #
441	7.468	7.470	7.474	7.477	6.994	6.997	6.994	6.997	7.001	7.003	7.474	7.477	0.375	0.385	-	-	-	-	-	-	Link	Part #
442	7.718	7.720	7.724	7.727	7.244	7.247	7.244	7.247	7.251	7.253	7.724	7.727	0.375	0.385	-	-	-	-	-	-	Link	Part #
443	7.968	7.970	7.974	7.977	7.494	7.497	7.494	7.497	7.501	7.503	7.974	7.977	0.375	0.385	-	-	-	-	-	-	Link	Part #
444	8.218	8.220	8.224	8.227	7.744	7.747	7.744	7.747	7.751	7.753	8.224	8.227	0.375	0.385	-	-	-	-	-	-	Link	Part #
445	8.468	8.470	8.474	8.477	7.994	7.997	7.994	7.997	8.001	8.003	8.474	8.477	0.375	0.385	-	-	-	-	-	-	Link	Part #
446	8.967	8.970	8.974	8.977	8.494	8.497	8.494	8.497	8.501	8.503	8.974	8.977	0.375	0.385	-	-	-	-	-	-	Link	Part #
447	9.467	9.470	9.474	9.477	8.994	8.997	8.994	8.997	9.001	9.003	9.474	9.478	0.375	0.385	-	-	-	-	-	-	Link	Part #
448	9.967	9.970	9.974	9.977	9.494	9.497	9.494	9.497	9.501	9.503	9.974	9.978	0.375	0.385	-	-	-	-	-	-	Link	Part #
449	10.467	10.470	10.474	10.477	9.994	9.997	9.994	9.997	10.001	10.003	10.474	10.478	0.375	0.385	-	-	-	-	-	-	Link	Part #
450	10.967	10.970	10.974	10.977	10.494	10.497	10.494	10.497	10.501	10.503	10.974	10.978	0.375	0.385	-	-	-	-	-	-	Link	Part #
451	11.467	11.470	11.474	11.477	10.994	10.997	10.994	10.997	11.001	11.003	11.474	11.478	0.375	0.385	-	-	-	-	-	-	Link	Part #
452	11.967	11.970	11.974	11.977	11.494	11.497	11.494	11.497	11.501	11.503	11.974	11.978	0.375	0.385	-	-	-	-	-	-	Link	Part #
453	12.467	12.470	12.474	12.477	11.994	11.997	11.994	11.997	12.001	12.003	12.474	12.478	0.375	0.385	-	-	-	-	-	-	Link	Part #
454	12.967	12.970	12.974	12.977	12.494	12.497	12.494	12.497	12.501	12.503	12.974	12.978	0.375	0.385	-	-	-	-	-	-	Link	Part #
455	13.467	13.470	13.474	13.477	12.994	12.997	12.994	12.997	13.001	13.003	13.474	13.478	0.375	0.385	-	-	-	-	-	-	Link	Part #
456	13.967	13.970	13.974	13.977	13.494	13.497	13.494	13.497	13.501	13.503	13.974	13.978	0.375	0.385	-	-	-	-	-	-	Link	Part #
457	14.467	14.470	14.474	14.477	13.994	13.997	13.994	13.997	14.001	14.003	14.474	14.478	0.375	0.385	-	-	-	-	-	-	Link	Part #
458	14.967	14.970	14.974	14.977	14.494	14.497	14.494	14.497	14.501	14.503	14.974	14.978	0.375	0.385	-	-	-	-	-	-	Link	Part #
459	15.467	15.470	15.474	15.477	14.994	14.997	14.994	14.997	15.001	15.003	15.474	15.478	0.375	0.385	-	-	-	-	-	-	Link	Part #
460	15.967	15.970	15.974	15.978	15.494	15.497	15.494	15.497	15.501	15.503	15.974	15.978	0.375	0.385	-	-	-	-	-	-	Link	Part #
